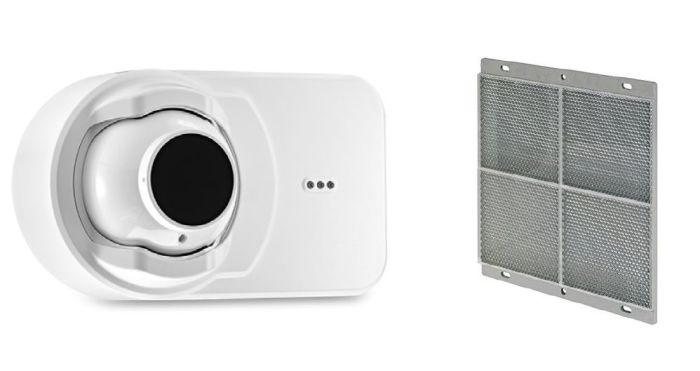

Intelligent Imaging Beam Detector

Code : SSF-OSI-RI

Product availability : NSW, ACT, VIC, TAS & QLD
Intelligent Imaging Beam Detector
For further information, please contact your local branch, and our staff will assist you.
  • Intelligent addressable Beam Detector
  • Combined transmitter/receiver unit
  • Wide 12º field of view
  • Built-in imager heater
  • 50º horizontal and 20º vertical beam adjustment
  • Status LED indicators visible from the front and bottom
  • Paintable housing/cover
  • Removable plug-in terminal blocks
  • Resistant to solid object intrusion

The SSF-OSI-RI intelligent addressable reflector-type linear optical beam smoke detector is uniquely suited for protecting large open areas with high ceilings, where spot-type smoke detectors are difficult to install and maintain. Ideal applications are warehouses, atriums, aircraft hangars, sporting arenas and concert halls. The beam operates primarily on the principle of light obscuration using infrared. The SSF-OSI-RI detector is a combined transmitter/receiver and is compatible with AFP-3030 fire alarm control panels in FlashScan mode.

Data Sheet - Intelligent Beam Imaging Detector - SSF-OSI-RI (279.78 kB)
Intelligent Imaging Beam Detector Installation Guide (1.99 MB)
