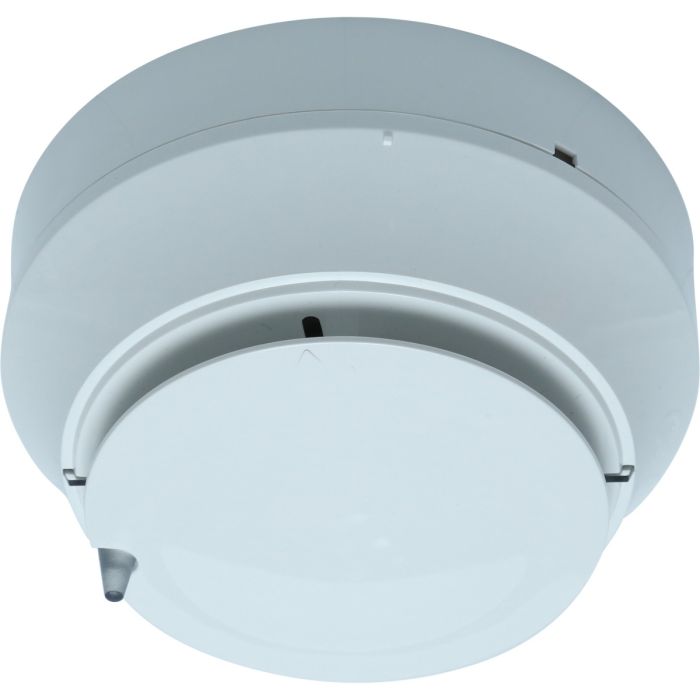

951 Series IntelliQuad Multi-Criteria Fire & Carbon Monoxide (CO) Detector

• AS7240.15:2018 approved
• Ability to detect all four major elements of a fire
• Separate carbon monoxide (CO) detection signal
• Drift compensation both smoke & CO sensors
• Highest nuisance alarm immunity
• Only single SLC address
• 10-year CO cell with end-of-life warning
• RealTest® CO testing capability
• Dual LEDs for 360 visibility
• FlashScan protocol support

The IntelliQuad® Multi-criteria Fire & CO detector is a plug-in, addressable device that provides both fire and carbon monoxide (CO) detection. The detector combines four separate sensing elements in one unit to sense multiple components of a fire ie smoke, CO, light/flame, and heat. This approach enables enhanced sensitivity to real fire with heightened immunity to nuisance particulates. For CO, the detector’s electrochemical sensing cell creates a separate signal for life safety CO detection.

Multiple sensors and communication can greatly reduce nuisance alarms compared to single sensing methods. Sophisticated algorithms maximize the advantages of each sensor type, delivering the most effective detection strategy with heightened immunity to nuisance particulates and enhanced sensitivity to real fire.

• Photoelectric sensors - detect airborne particles associated with smoke
• Thermal sensors - detect heat and rate-of-rise (57.2°C fixed temperature threshold)
• Carbon Monoxide sensors - detect this by-product of fire for accurate fire detection
• Infrared sensors - discern light patterns in the environment as an additional data point for alarm determination

This ability to reject certain nuisance alarm triggers, such as theater smoke, supports the use of the IntelliQuad Series detector in applications where moderate to heavy nuisance conditions exist that might cause single sensing detectors to false alarm.

Available in white colour. Additionally, ivory and black trim kits are available in packs of 10.

Please contact your local FireSense branch for further information.
